Your Ultimate Solution for Lightning-fast Data Transfer!

Our data copy & erasure device has various intelligent duplication modes that can be adapted to the requirements of your application. You can duplicate data efficiently and reliably using the various copy modes shown in the illustration. The copied areas are marked in red and the data areas in blue. The duplication time depends on the speed supported by the hard disk controller chip.

The PCIe Hybrid-series supports various refurbishment methods, including:

• Quick Erase
• Full Erase
• DoD-Erase and
• DoD-Erase + Compare.

In addition, the device offers dual data verification by Compare and CRC
to ensure the accuracy of the copied data.

Our duplicator is highly compatible and supports:

• Windows (FAT16/32/64)
• Linux (ext2/ext3/ext4/LVM) und
• Mac (HFS/HFS+/HFSX) in quick copy mode

All system and proprietary formats are supported in full media copy mode. The PCIe Hybrid-series is designed for capacities of 18 TB or more and offers support for MBR and GPT partitioning. It also automatically recognizes and supports NVMe/SATA signals for cross-platform duplication.

Note: For cross-platform duplication, it is recommended to use a data hard disk. When copying an operating system, the same protocol device should be used to ensure that the device can boot properly into the operating system.

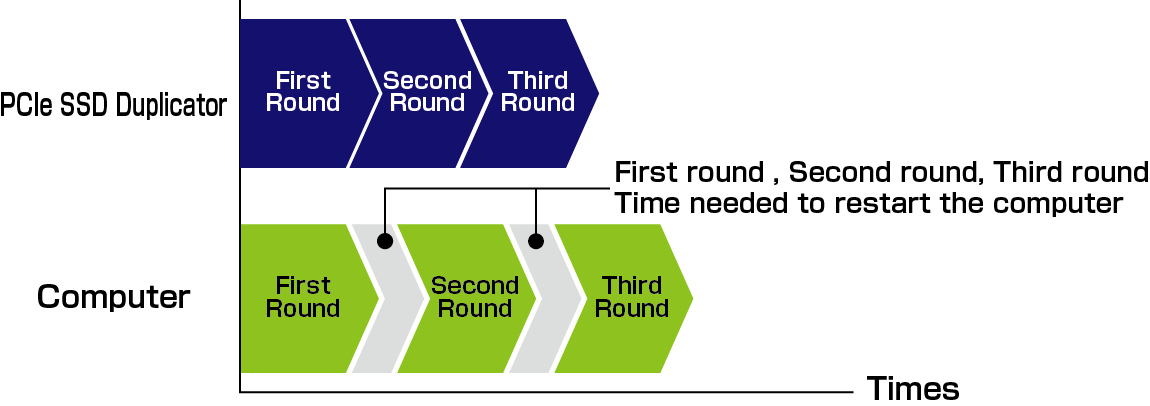

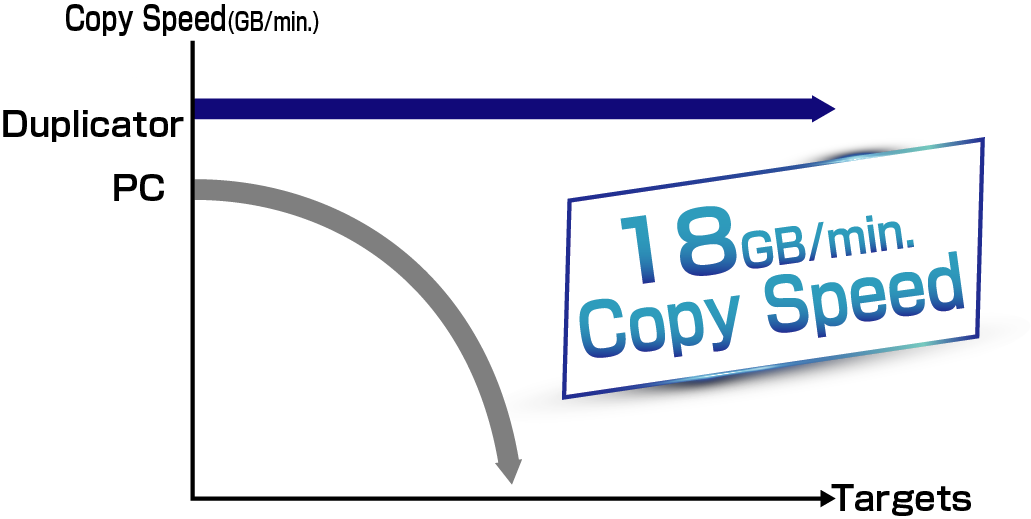

This high-speed device enables transfer rates of up to 18 GB per minute without any loss of speed, even when the number of destinations increases. Ideal for manufacturers, this copy system offers intelligent operation with no waiting time between copies.
