LAB8501 Labeling Solution: Efficient and Flexible Product Labeling
Adaptable Design for Optimal Flexibility:
Discover the LAB8501 labeling solution, distinguished by an adaptable, modular design that can be effortlessly modified
to meet specific requirements. This innovative solution offers versatile applications for containers of any shape, whether
in the food and beverage industry, pharmaceutical production, cosmetics and skincare product manufacturing, or other industrial sectors.
Integrated Production Capabilities for Maximum Efficiency:
The LAB8501 facilitates both standalone use and seamless integration into production lines with various machines.

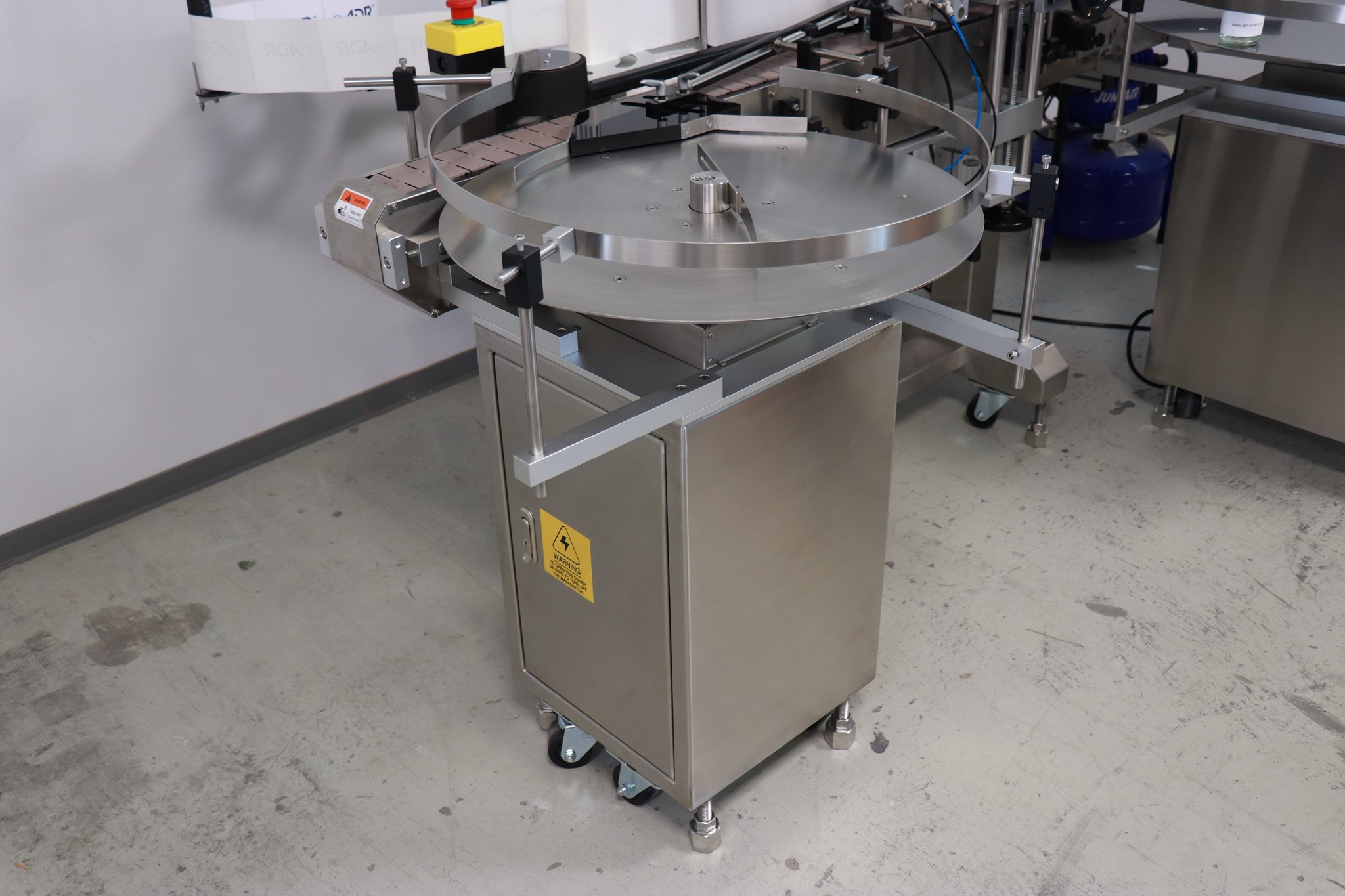

Additional features such as printers and turntables enhance functionality, meeting the demands of diverse production processes.
Flexibility through Innovative Technology:

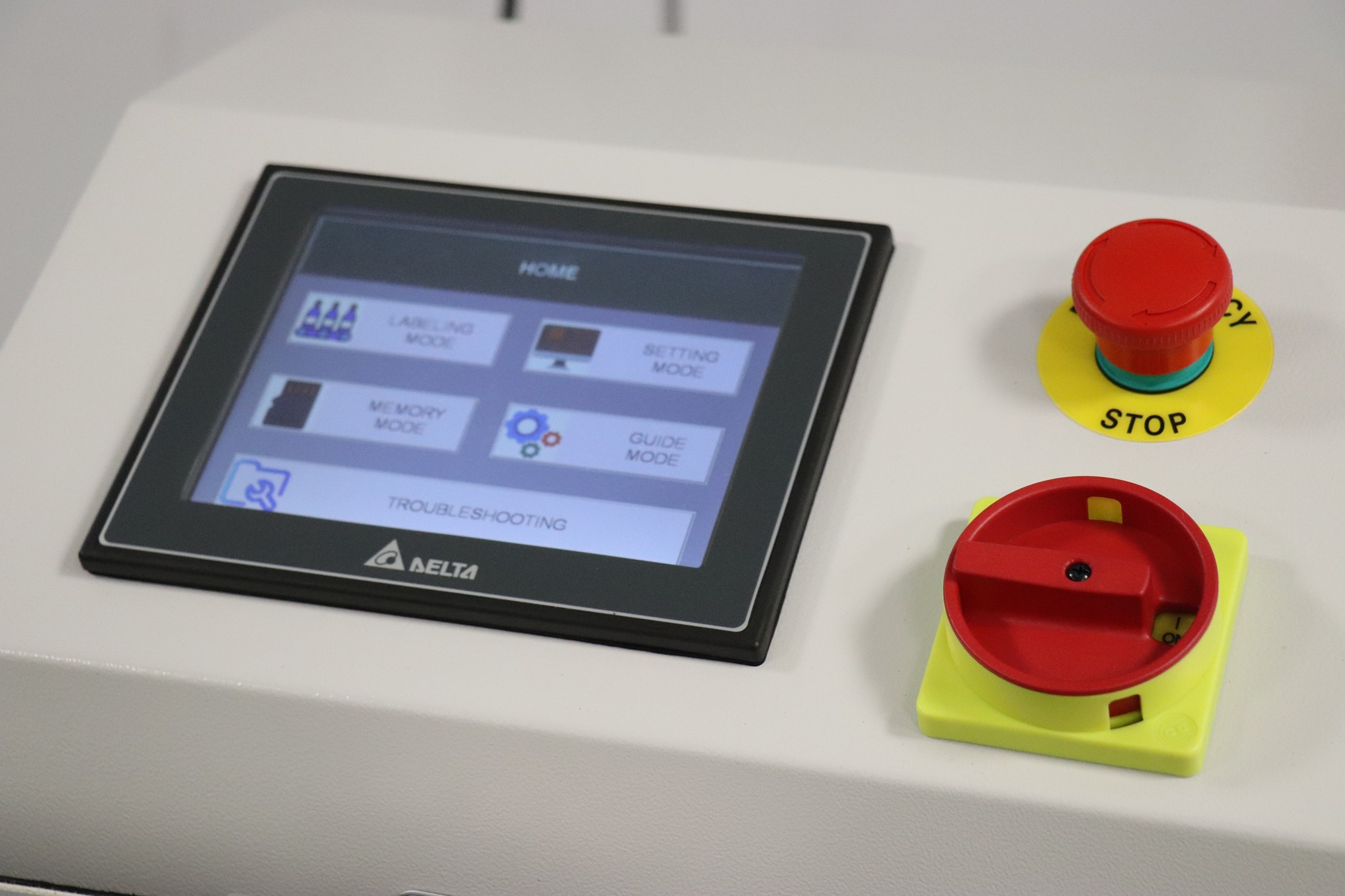

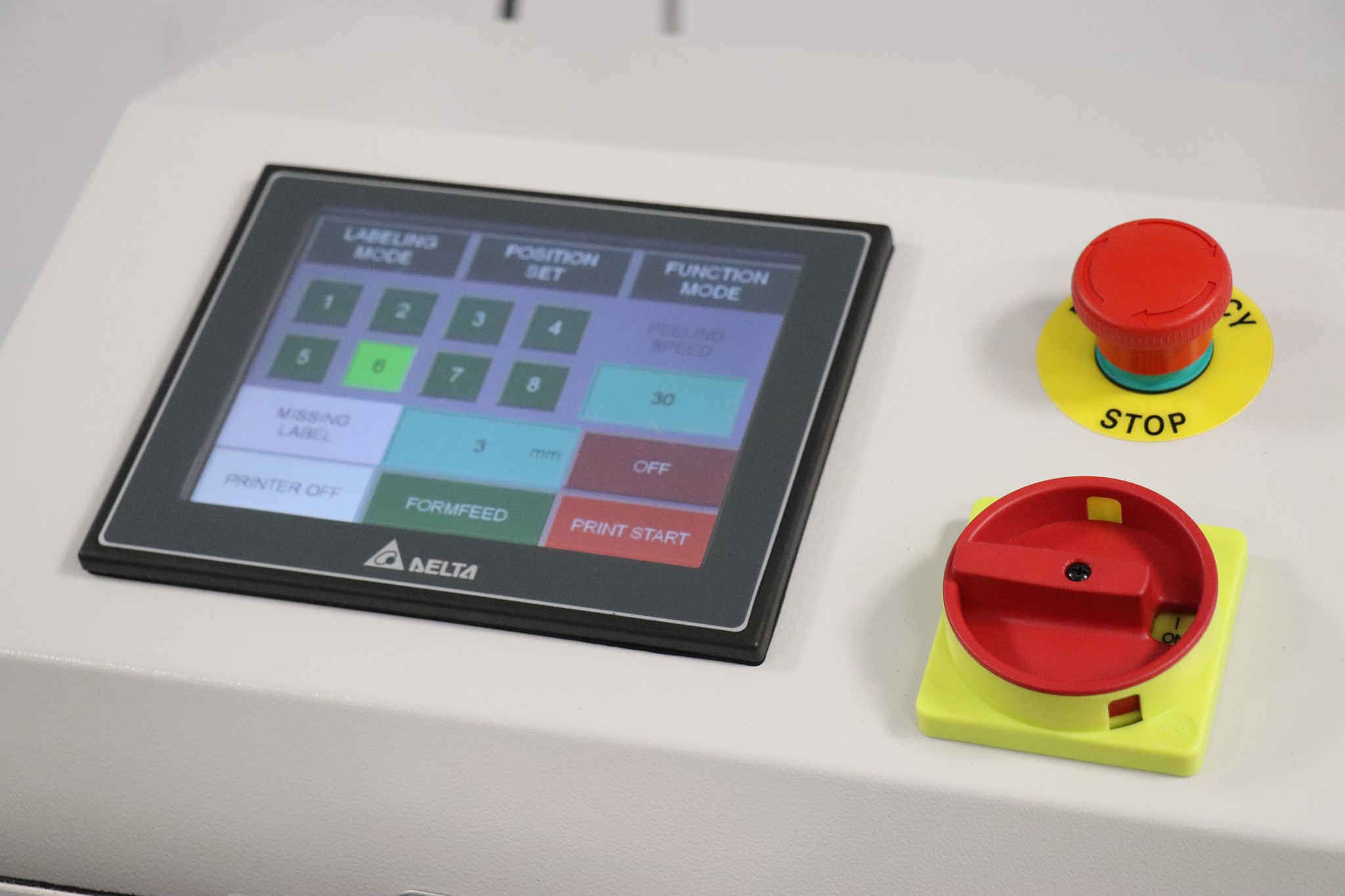

The personalized technology control system, adjustable handwheels, and user-friendly accessories ensure not only stability
but also effortless adaptation to specific requirements across various industries.
Precise Labeling for Diverse Container Shapes:
The LAB8501's wrap-around labeler is ideal for all types of round glass and plastic containers that can stand upright independently.
This specialized solution is designed for precise labeling, making it the ideal choice for individual labeling needs.
Invest in the LAB8501 to optimize your product labeling and benefit from a top-notch, flexible labeling solution.
Learn more about this innovative labeling machine and its diverse applications in your industry.
Get a First Impression of the Machine:
This video showcases the LAB8501 labeling machine with a 3-point system. Thanks to the 3-point system, precise results are achievable
even with labels longer than 300mm.
Additional Options with the LAB8501:
Front and Back Labeling
The LAB8501, with its 3-point system, also satisfies the requirements for front and back labeling, delivering satisfactory results.
This video demonstrates the LAB8501 labeling machine with the 3-point system for simultaneous front and back labeling.
Option to Integrate a Thermal Printer
The LAB85001 also offers the option to integrate a thermal printer, utilizing TSC brand devices. The labeling machine can be supplied with the entire TSC range of industrial thermal printers.
You have the choice between the PEX1100 series (TSC PEX1120, PEX1130, PEX1160)and the PEX1200 series (TSC PEX1220, PEX1230, PEX1260)
Technical Specifications
Model | ADR LAB8501 |
Max. label height | 150mm |
Max. label length | 300mm |
Max. label roll size | 300mm max. |
Operation | Standalone with internal controller |
Conveyor width / Max product width | 100 mm |
Dispensing speed | 40m/min max. |
Spool diameter | 76mm |
Applicator Height | 150 mm (200mm optional) |
Dispense Driver | Stepper Motor |
Power supply | 220/110 Vac 50/60Hz single phase |
Power Consumption | 760 VA |
Net Weight | 150kg |
System dimensions (mm) | 2004mm (L) x 1054mm (W) x 1043mm (H) |
Certifications | FCC, CE, RoHS |
Would you like more Information?
Click here to download the datasheet.
