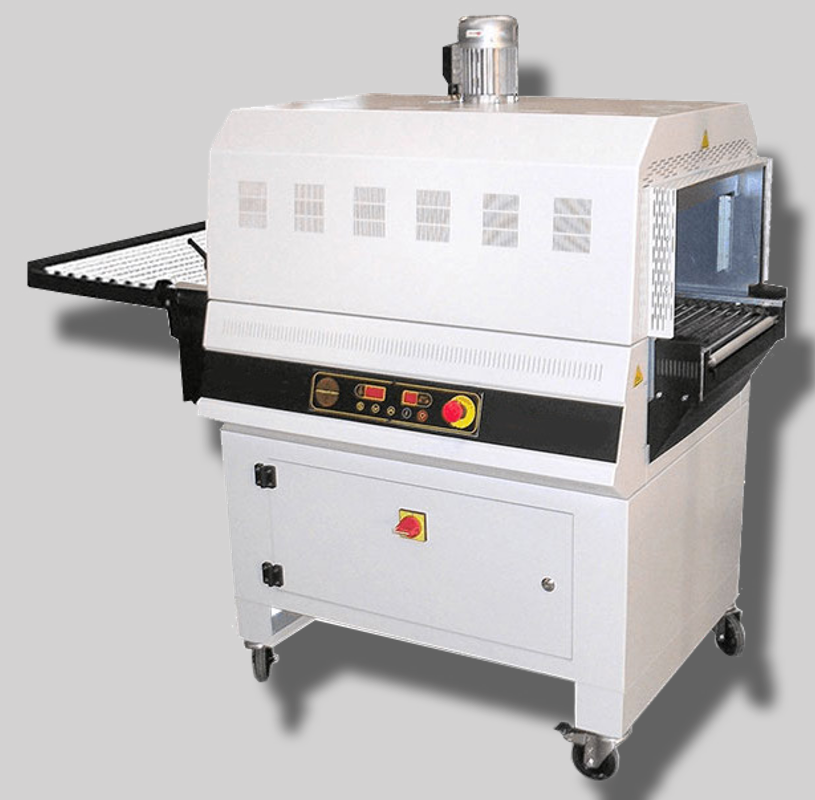

JMV 8000 Tunnel Shrink tunnel
Manual height adjustment of the roller table, Digital control panel with 9 selectable and customizable programs, Possible selection of automatic roller rotation, Product conveyance, Adjustable double air deflectors, Self-extinguishing program, Outfeed roller conveyor as standard
The JMV 8000 TUNNELs are offered on the market with the latest technology and aesthetics and can be flexibly and effectively adapted to a wide range of packaging requirements using a variety of heat-shrinkable films.
The STEEL IT version from JMV is ideal for the requirements of the food and pharmaceutical sectors
Power output
| 200 / 208 / 220 / 380 / 415 / 440 V
|
Phase
| 3 p/h
|
Max. Power
| 7,2 kW
|
Max. Product dimensions
| 400 x 220 x L700 mm
|
Tunnel inlet dimensions
| 450 x 240 mm
|
Machine dimensions
| 1770 x 840 x H1465 mm
|
Machine weight
| 188 kg (net) / 236 kg (gross)
|
This device is part of the product line of JMV Robotique, solution provider of packaging machines, espacially cellophaning and labelling.
This line also includes
IH510 Input Hopper / Seperator
ADRSS1 Manual Cellophane
CDC200 Fully automatic Cellophane Cutter
Warranty
12 months, extension on request
