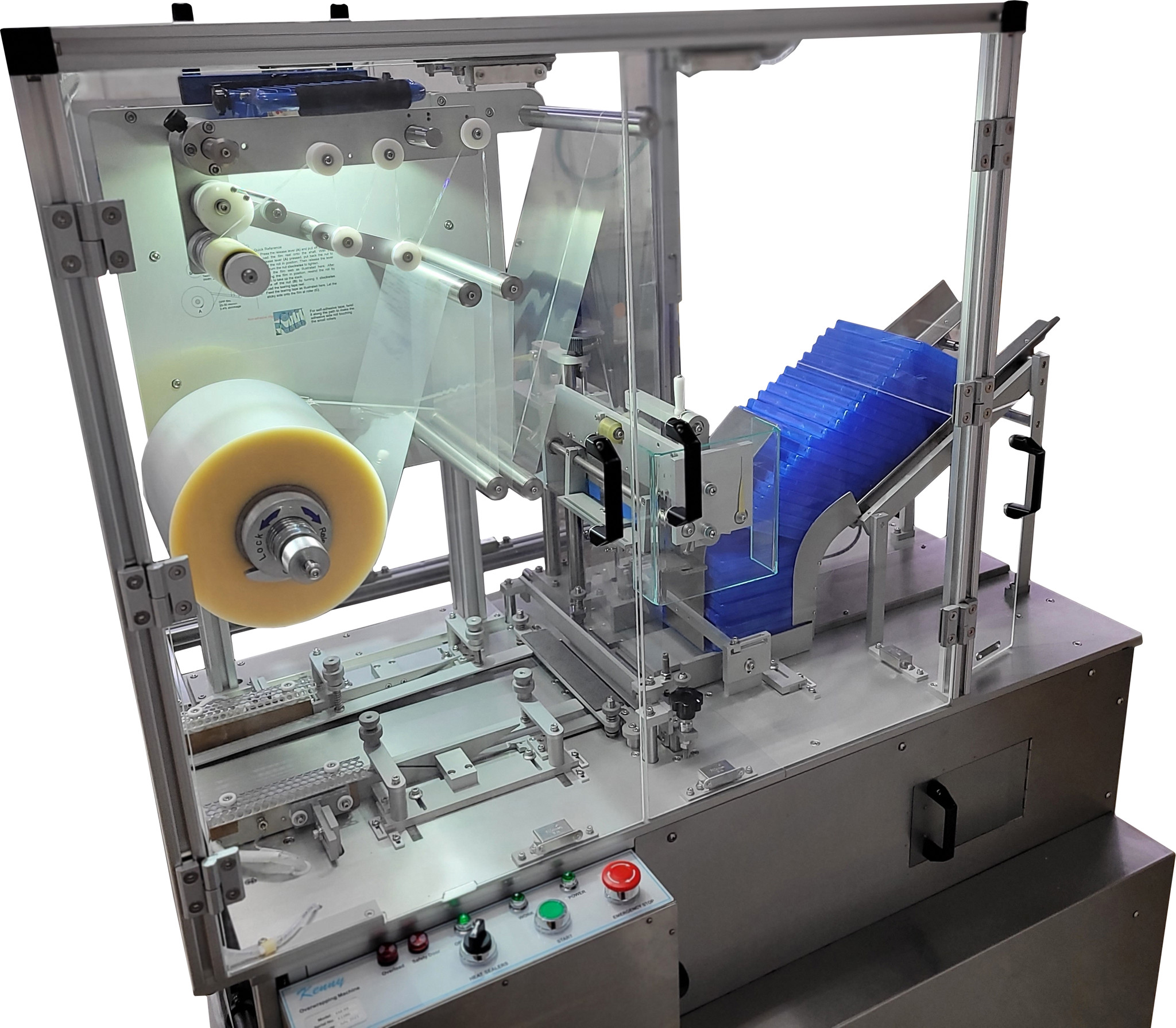

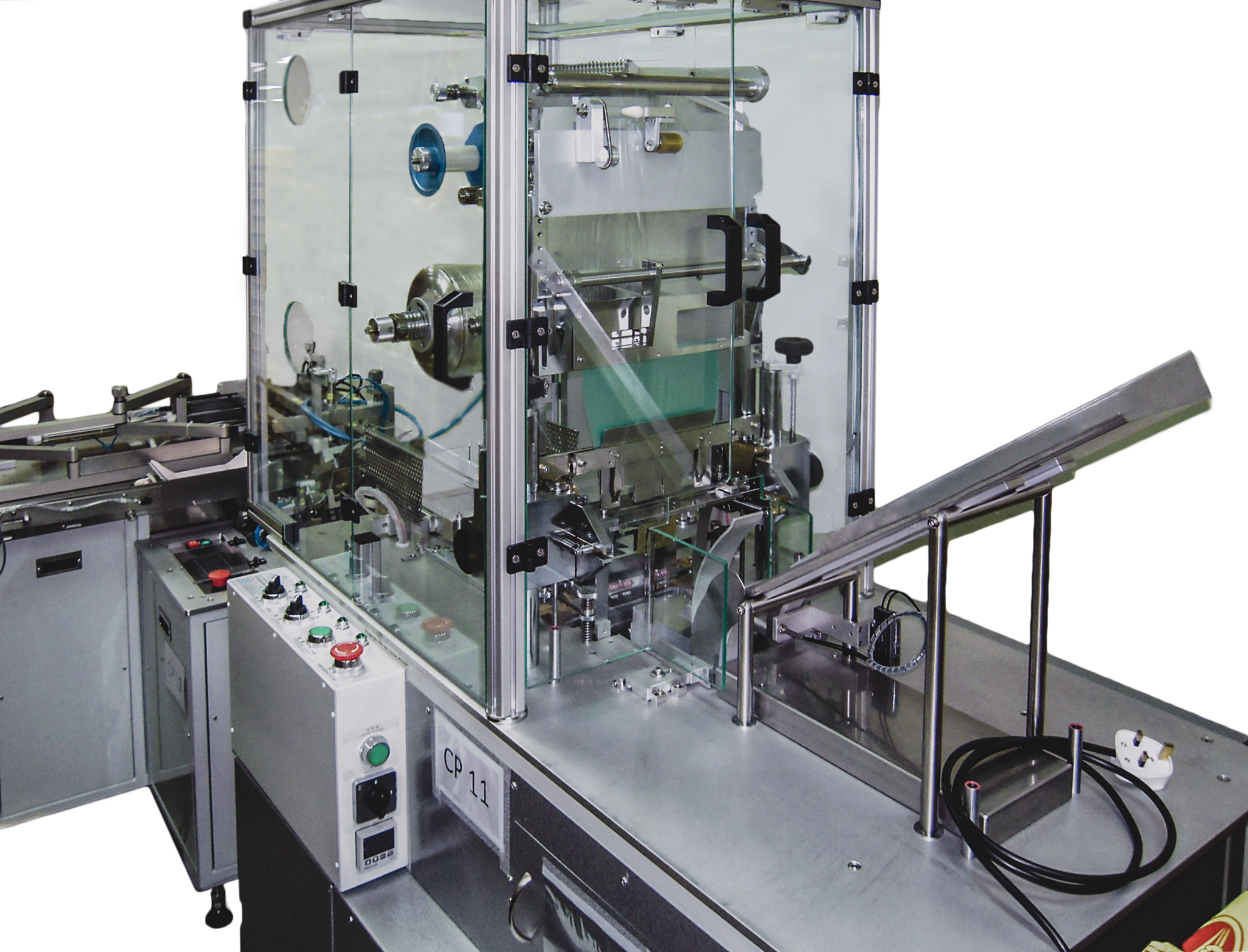

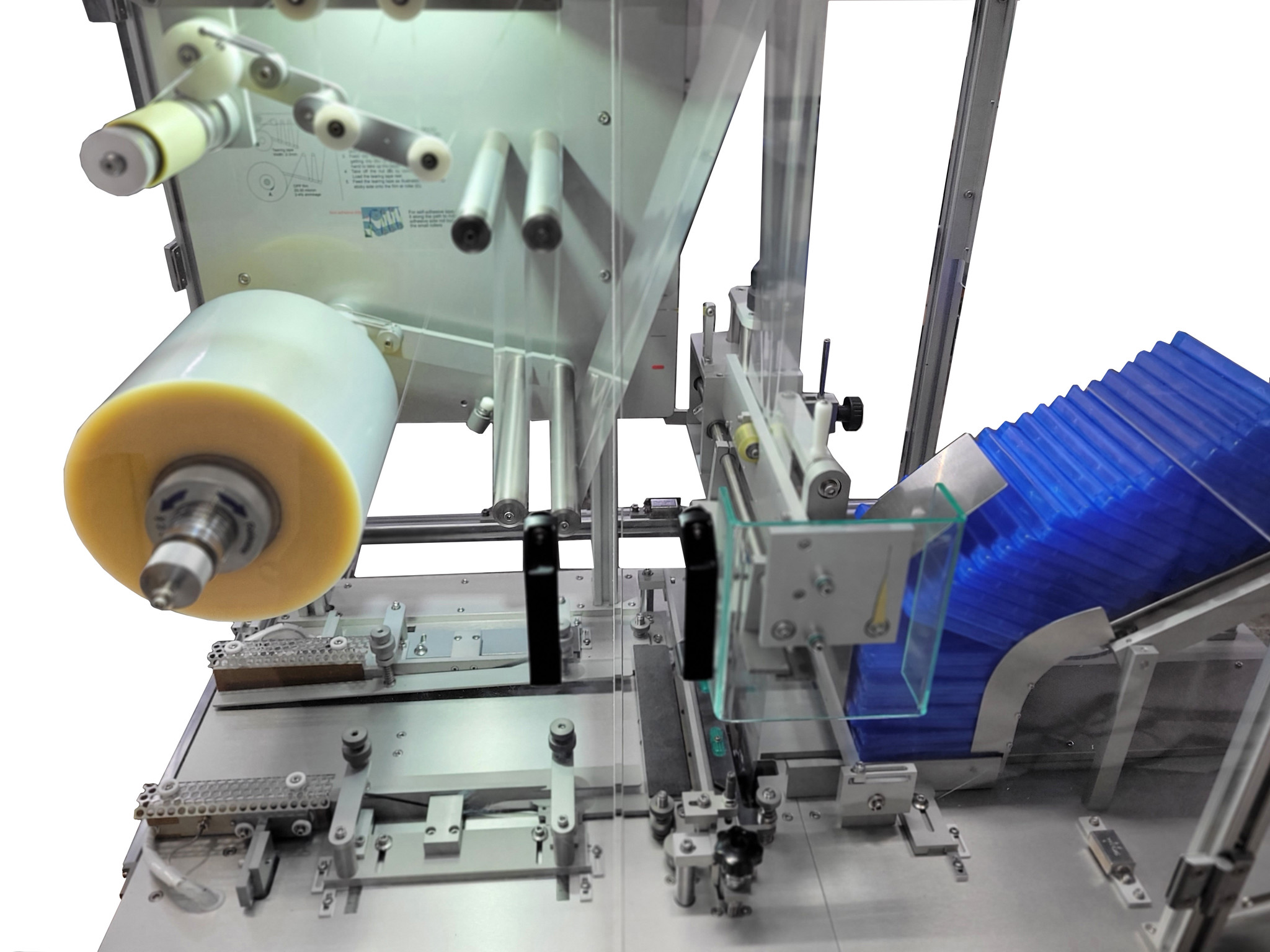

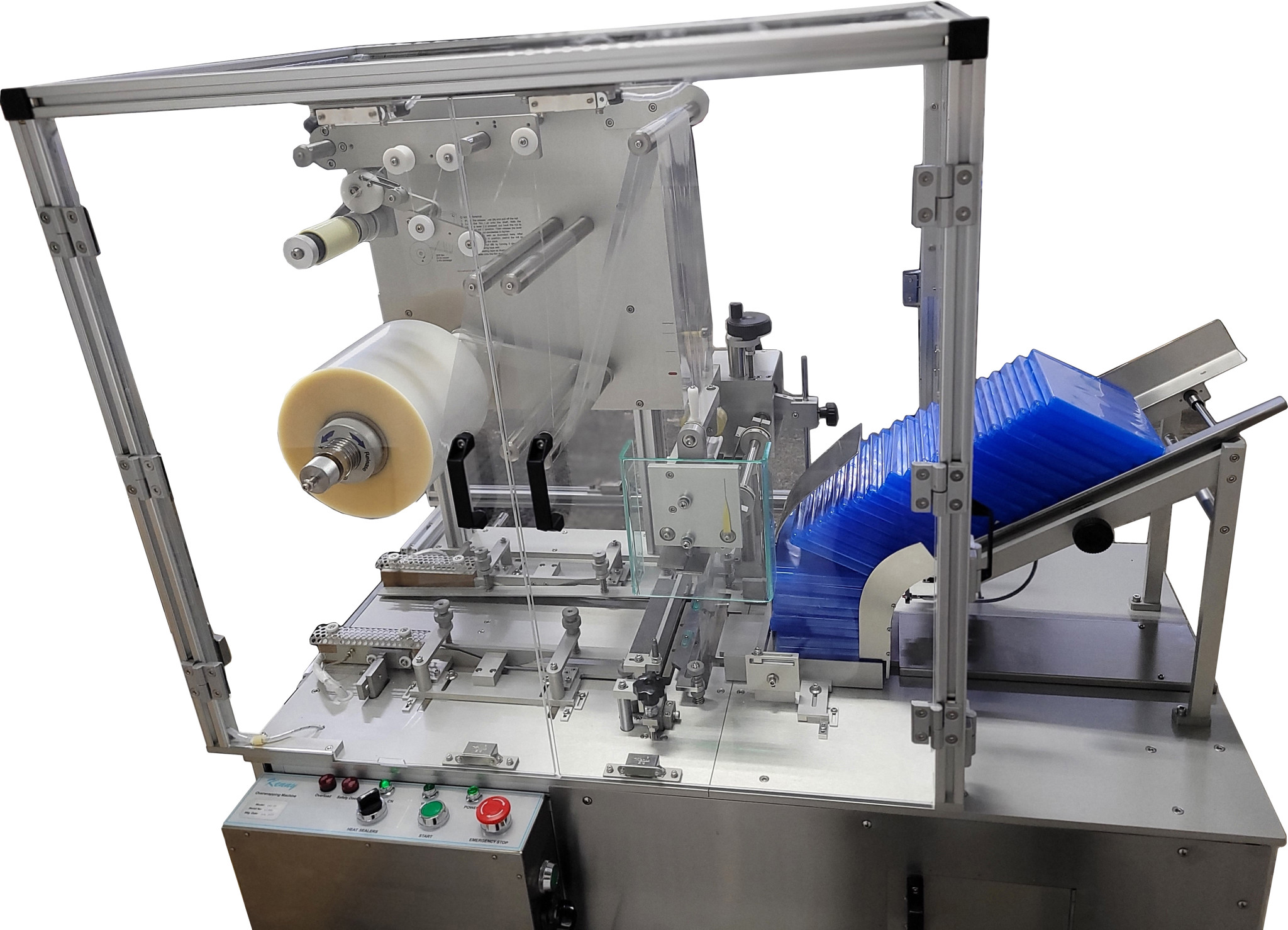

CDC300 Speedwrapper Overwrapping machine

The CDC300 Speedwrapper is a fully automatic cellophane overwrapping machine, beeing sold worldwide

as the best testimonial of our superior craftmanship, reliable performance, and high afforability.

To cope with the advance in multimedia technologies, machines for video cassettes, standard and slim CD

jewel boxes, as well as DVD Amaray cases have been added along with the original audio cassette wrapper.

Custom orders are available to serve your ever changing needs in media industries, as well as food and

pharmaceutical industries.

FEATURES:

• Very easy to use

• Completely manual system

• Low maintenance

• Reliable performance

• High afforability

TECHNICAL SPECIFICATIONS

Dimensions: 1,175(L) x 750(W) x 1,580(H)mm;

Packing: 1,500(L) x 950(W) x 1,800(H)mm: (Stand export packing by wooden case)

Weight: 320kg (Net); 450kg (Gross);

Speed: 55 ppm

Overwrapping material: OPP film (Oriented Polypropylene)

Thickness: 20-25 microns

Heat shrinkage: 2-7%

Power requirements: 1-phase 200-220V, 10A, 50-60Hz, 2,000W

Air requirements: No air required

Standard attachment: - Tearing tape applicator assembly

                                      - Spare parts and tool box

Options: - Collecting table (175CT)

                - Multiloader (240ML)

                - Optical sensor assembly for printed OPP film

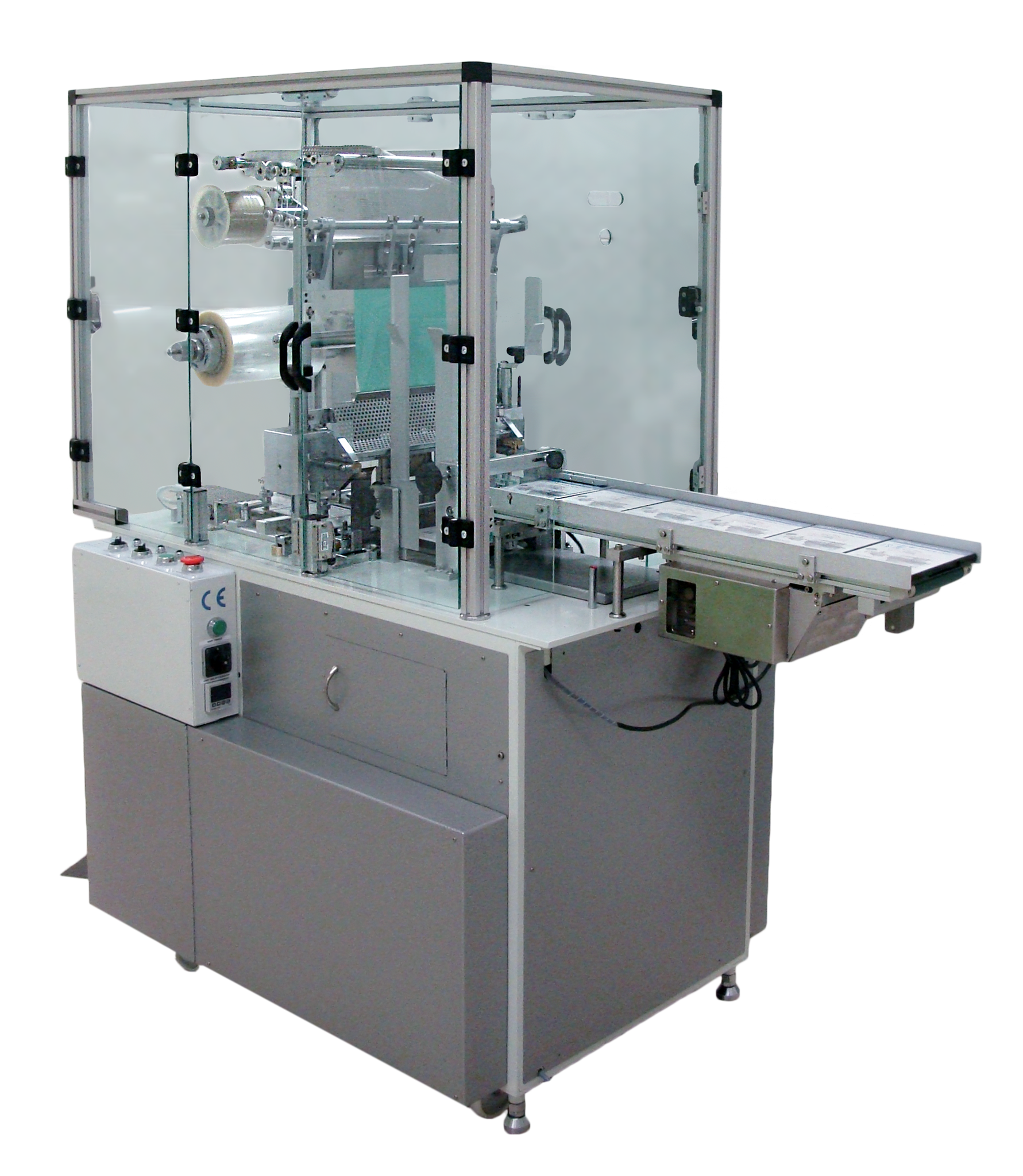

                - Infeed conveyor for packaging machine connection

                - Safety guardboards

Remarks: All specifications and terms are subject to change

without notice
