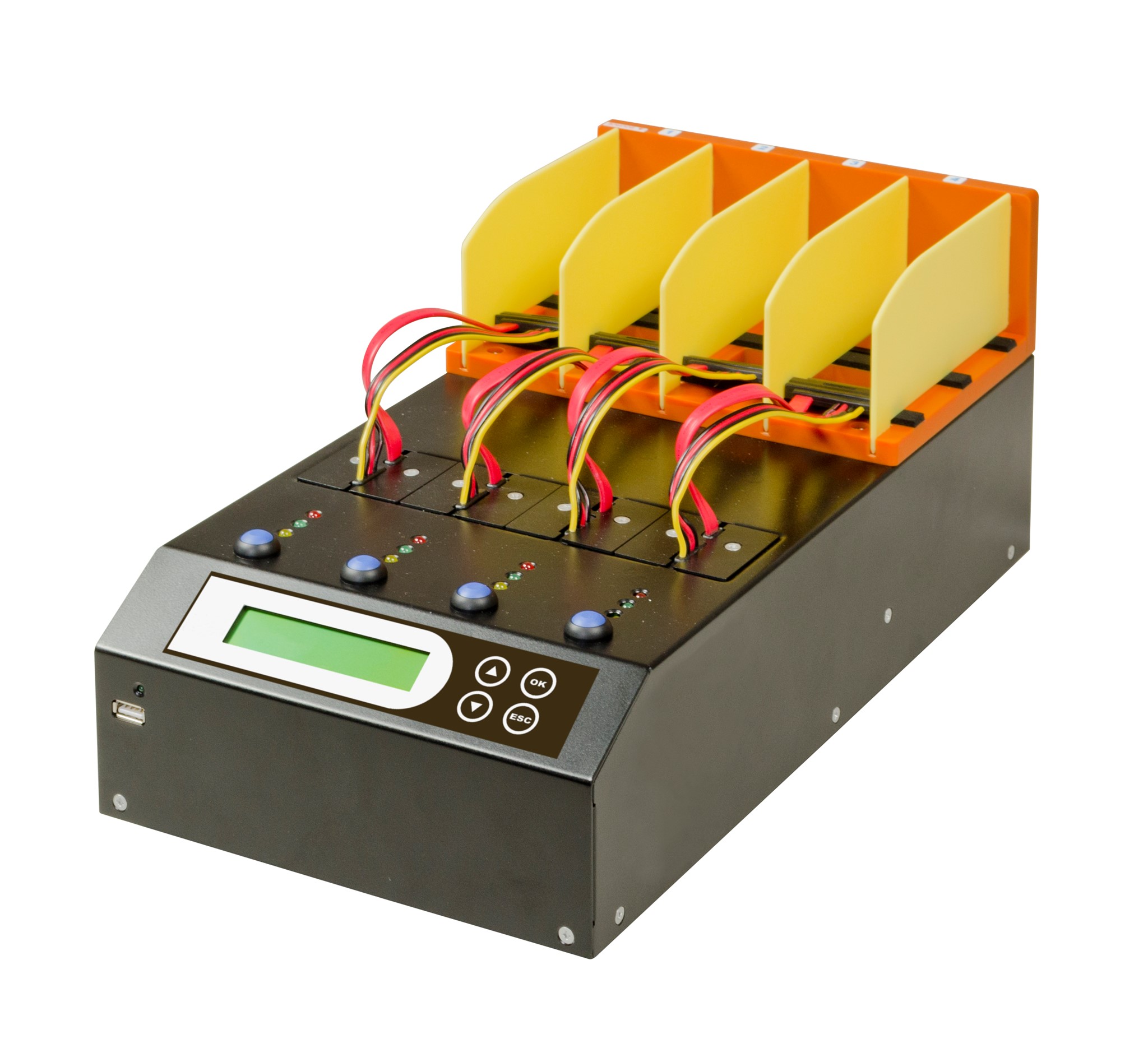

About the ADR SAS Producer MT
The ADR SAS Producer MT is the best solution when it comes to SAS duplicators.
This SAS duplicator is used to copy, check and erase SAS harddrives.
You can handle SAS and SATA Harddrived with this system.
The cable-based solution offers you the best way to work with different HDD formats.
You can easily connect HDDs in different cases with the connectors of the system and the rack offers enough space to store your HDD cases.
The ADR SAS duplicator is actually designed for a high-volume erasing process.
Due to our unique multitasking technology we can erase 15 targets asynchronously with a transfer rate of up to 18GB per Minute.
This speed will not be decreased through the number of plugged HDDs.
As each port is handled from an individual controller the number of targets has no influence on the copy speed.
The system comes with a quick start button on each port. So once you plugged a HDD you can start the erase process on each port independently.
FPGA based standalone System. You do not need a PC to run this system as it works with an internal controller
With a copy and erase speed of up to 18GB/Min. we offer the fastest solutions in the market.
No decrease with 15 targets at the same time as each port has its own controller built in.
The cables can easily be changed if needed. This keeps the service/maintenance costs very low.
As we offer a big range of adapters you can easily connect many kind of different HDD formats to the system.
Asynchronous erase button:
Each button of the SAS duplicator has its own erase quick button. This way you can already erase the first port while you connect the next 14 targets.
Our controller supports capacities with 18TB+. Our Engineers create fw updates all the time to keep up with the fast IT market.
You can follow the status of your processes directly on the LCD screen of your SAS duplicator or you can check the monitoring tool.
Once you connect the system with you PC you can follow the progress, writing speed, reding speed on the monitor of your PC.
The Log report is saving you a lot of information on the internal storage of the SAS duplicator.
You can download the Log report from the SAS duplicator to your computer.
This way you can store it internally or you can print it out for your QM.
Speed: up to 18GB/Min (Speed depends on used devices)
Capacity: Over 18TB+
Operation: FPGA based standalone system
Erase modes: 7 different erase modes, asynchronous and synchronous erase, support HPA erase
Copy modes: Quick copy for FAT16/32/64, Windows NTFS, Linux (Ext2/Ext3/Ext4) and MAC (HFS/HFS+/HFSX)
Whole Media: All formats & proprietary formats
GPT, MBR and advanced formats
Supported OS: All (Win, Mac, Linux and other prorietary formats)
