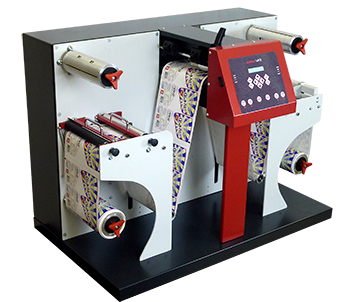

ADR LPX300 Label Cutter

ADR presents the new label cutter ADR LPX300. Developed to cut labels with the highest efficience, the label cutter offers the ideal solution for a wide range of label printers. With a lamination system, the possibility of cutting contours, an eliminitation system for disposal and a cutter, the user-friendly ADR LPX300 combines the newest tracking technology with the strongest industrial technik. The easy-to-use user interface can be effortlessly navigated through various menu paths and functions. Thanks to the impressive speed and precision of the LPX300, you can produce small quantities of labels reliably, quickly and above all inexpensively.

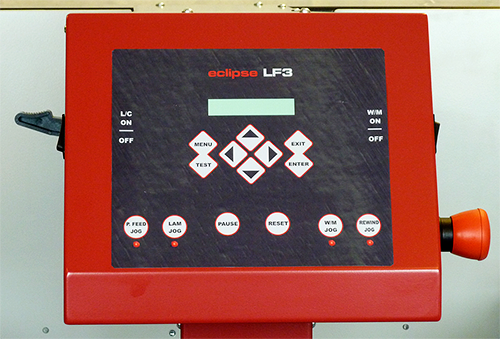

Easy-to-use User Interface	Compatible with all roll to roll label printers. Supports papers and plastic in different sizes.	Cutter blade with easy configuration options.



Perfect printed labels with clean cuts and forms, to ensure a professional appearance.







Technical Information

Cut width: 100 – 220 mm Cut speed: 800 mm axial maximum Cut force: 0 – 400 g in 5 g Schritten Max. label length: 361.95 mm Max. roll diameter 300 mm Roll core: 76 mm Interface and Software: WinPlot (Windows OS) cut software, cutter control parameter software. Plug-ins for CorelDraw and Adobe Illustrator. Power supply: 220/240  AC , Frequenz 50/60HZ +/- 2%. Measures L x W x H 1000 mm x 600 mm x 780 mm Weight: 100 kg
